Reliable & Stable
﹥Hybrid SiC, 2-level 4-leg topology, efficiency up to 99%.
﹥Full-load at 50°C, higher uptime and utilization.

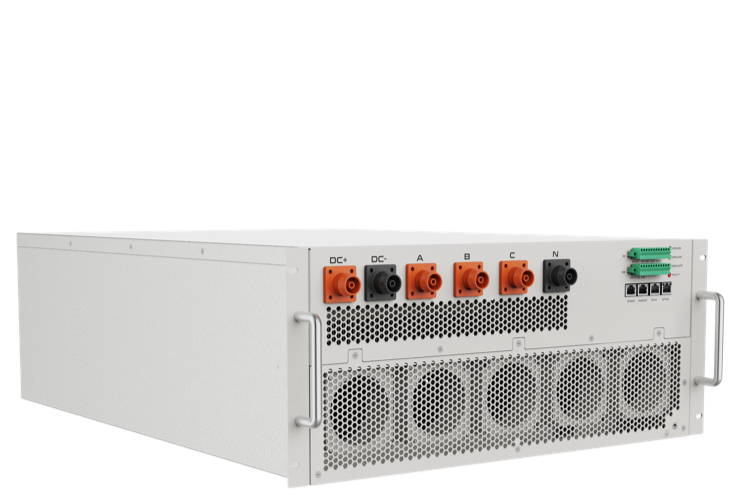

JTES-SiC130K-A
C&l Smart String Sic Air-Cooled PCS
Drawing on years of liquid-cooling R&D experience, Jingging Shudian has developed intelligent Sic-based air-cooled PCS. While controlling overall system cost, it achieves high-precision real-timecontrol, dynamic optimized management and efficient conversion of electric energy, providing cost-effective solutions for industrial and commercial energy storage systems.
Key Features
Grid-Friendly & Powerful Control
﹥Dual AC/DC power supply, reduced losses atdischarge end.
﹥Supports HVRT/LVRT, compatible withPQ/VF/VSG modes.
Flexible & Easy to Replace
﹥Integrates pre-charge, fuse, contactor andother DC HV devices.
﹥Multiple communicationports for flexible BMS/EMS interaction.
Full-featured & Stable Operation
﹥Supports 16 PQ units & 8 VF units operatingin parallel.
﹥Dual safety: leakage currentmonitoring + startup insulation self-test.

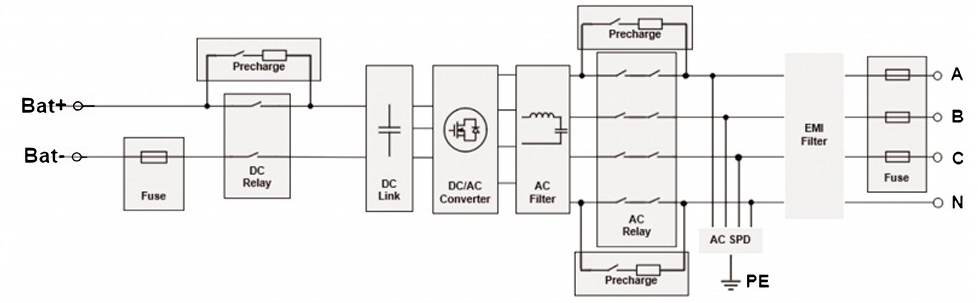

Electrical Single-Line Diagram

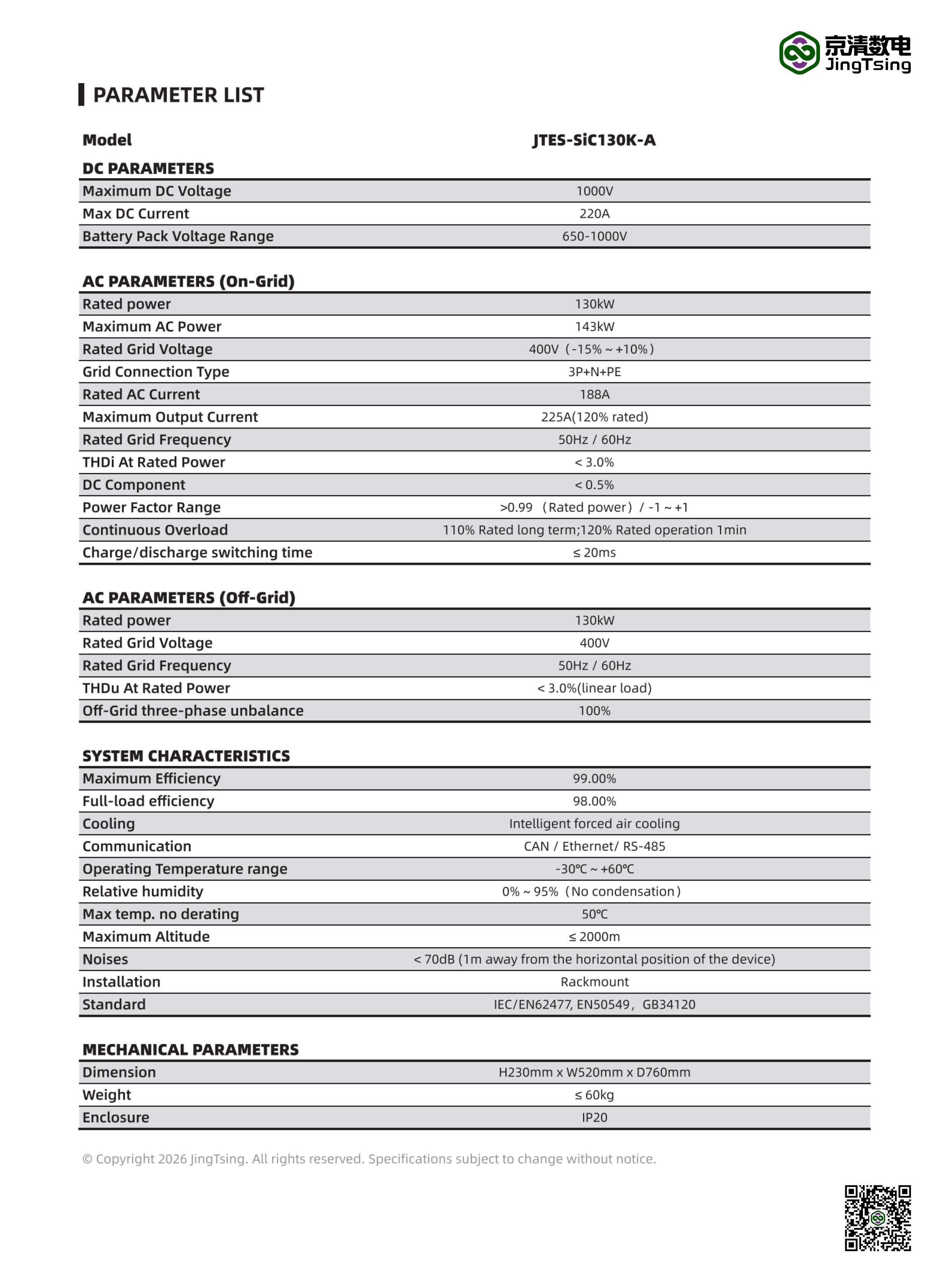

Product Specifications
