High-efficiency Liquid Cooling
﹥Liquid cooling, excellent IGBT temperature uniformity.
﹥Max conversion efficiency 99%, CEC efficiency 98.5%.
JTES-500K-W

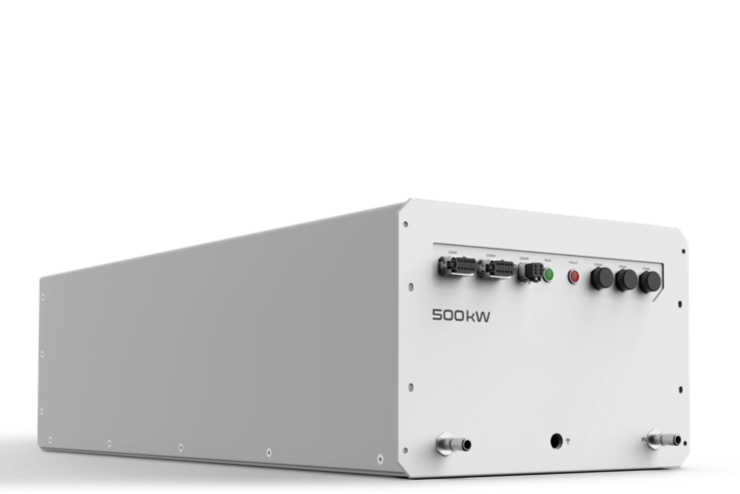

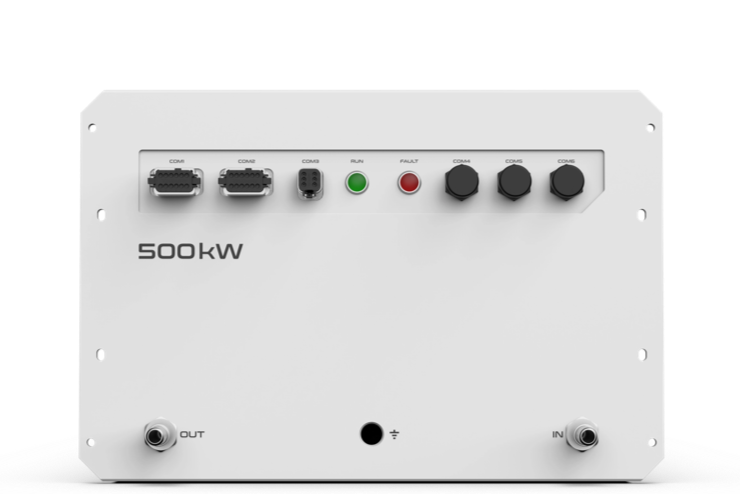

Utility-Scale HV Liquid-Cooled Energy Storage PCS
Industry-leading 200oV liquid-cooled modular PCS platform, rated 50okW, efficiency up to 99%.WideDC input range, high power density.Suitable for generation-side and grid-side energy storage systems.Cluster-level management ensures safer, more reliable operation, lower cost and higher efficiency.
Key Features
Better Performance
DC voltage up to 2250v, compatible with high-power-density cells.AC 1000V/1140V, flexible for step-uptransformers.
Diverse Intelligence
﹥PQ decoupling, VSG, black start supported.
﹥Constant power/voltage/current charge/discharge; self-developed host software.
Cost down, efficiency up
System efficiency increased by 0.5%, costreduced by 8%.Supports high/low voltageride-through, grid-forming capability.
Electrical Single-Line Diagram

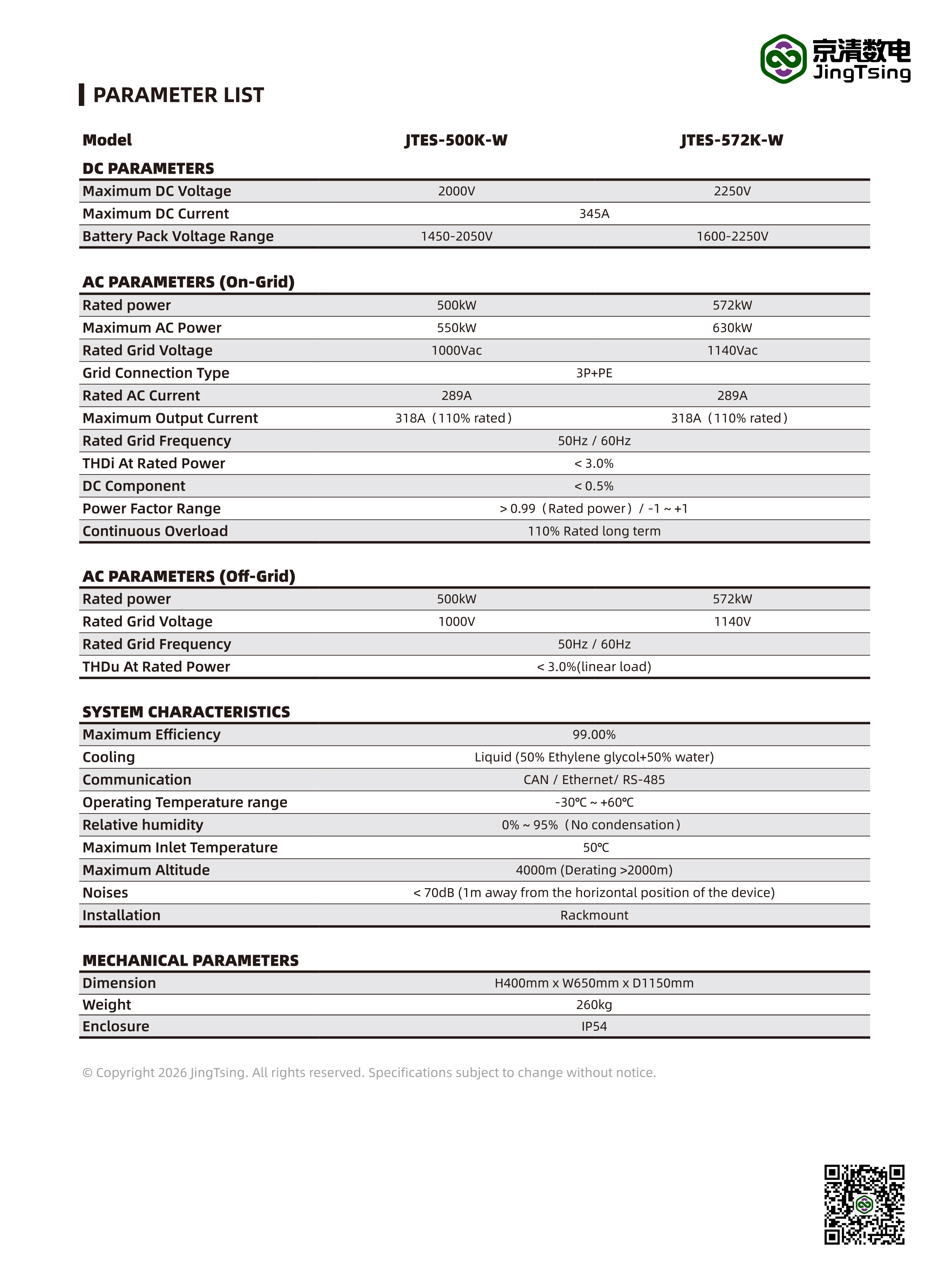

Product Specifications
