Superior Performance
﹥99% maximum efficiency, 120% overload capacity
range (-40~60°C) operation capacity.
﹥Liquid cooling technical route, wide temperature.
﹥Seamless grid-connected and off-grid switching,
minimum switching time of 20ms.

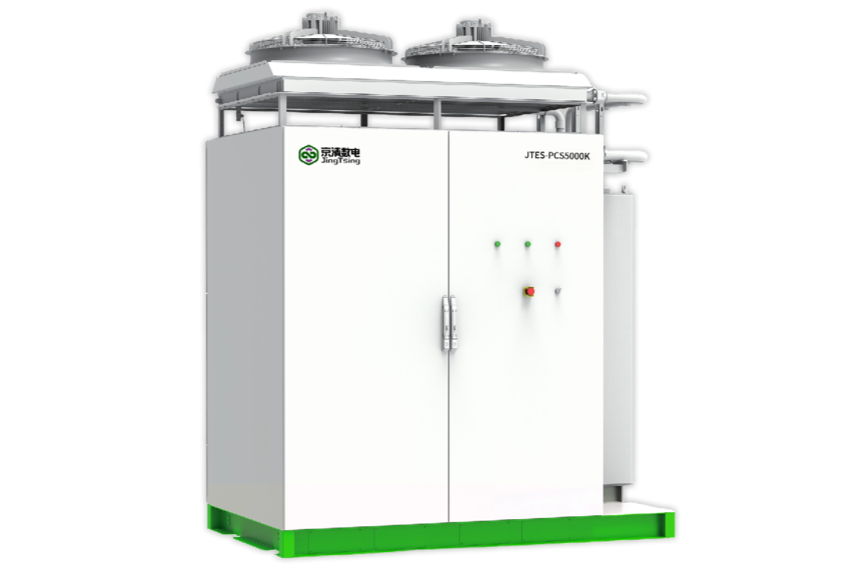

JTES-PCS5000K-1500/690-L01G1
Centralized Liquid-Cooled PCS
It features high power, high powerdensity, and high reliability, significantly saving equip-ment space and installation costs, and reducing thecustomer's LCOS (Levelized Cost of Storage). The prod-uct has an IP66 protection rating, making it suitable forvarious outdoor environments such as high tempera-tures, high humidity, high altitudes, high salt fog, andsandstorms. It is an excellent choice for energy storageapplications on the generation side, grid side, and user side.
Key Features
Safe and Reliable
﹥Ultra-strong environmental adaptability, IP66 protection grade.
﹥Dual DSP redundant control system, redundant backup of control power supply.
﹥Professional design against sand, water, and salt fog,suitable for different outdoor scenarios.
Grid-friendly
﹥Strong grid adaptability, supports stable operationwith SCR=1.0.
﹥Grid-forming capability, active voltage support,inertia support, , and black start.
﹥Features zero voltage and high voltage ride-through capabilities.
Comprehensive Functions
﹥Includes functions such as Power Quality (PQ), Voltageand Frequency (VF), and Virtual Synchronous Genera-tor (VSG)
﹥Multiple communication interfaces including Ethernet,RS485, and CAN, supporting various communicationprotocols such as IEC61850, IEC104, Modbus, and CAN.
﹥Compatible with various types of batteries, supports multiple charging and discharging modes such as constant power, constant voltage, and constant current

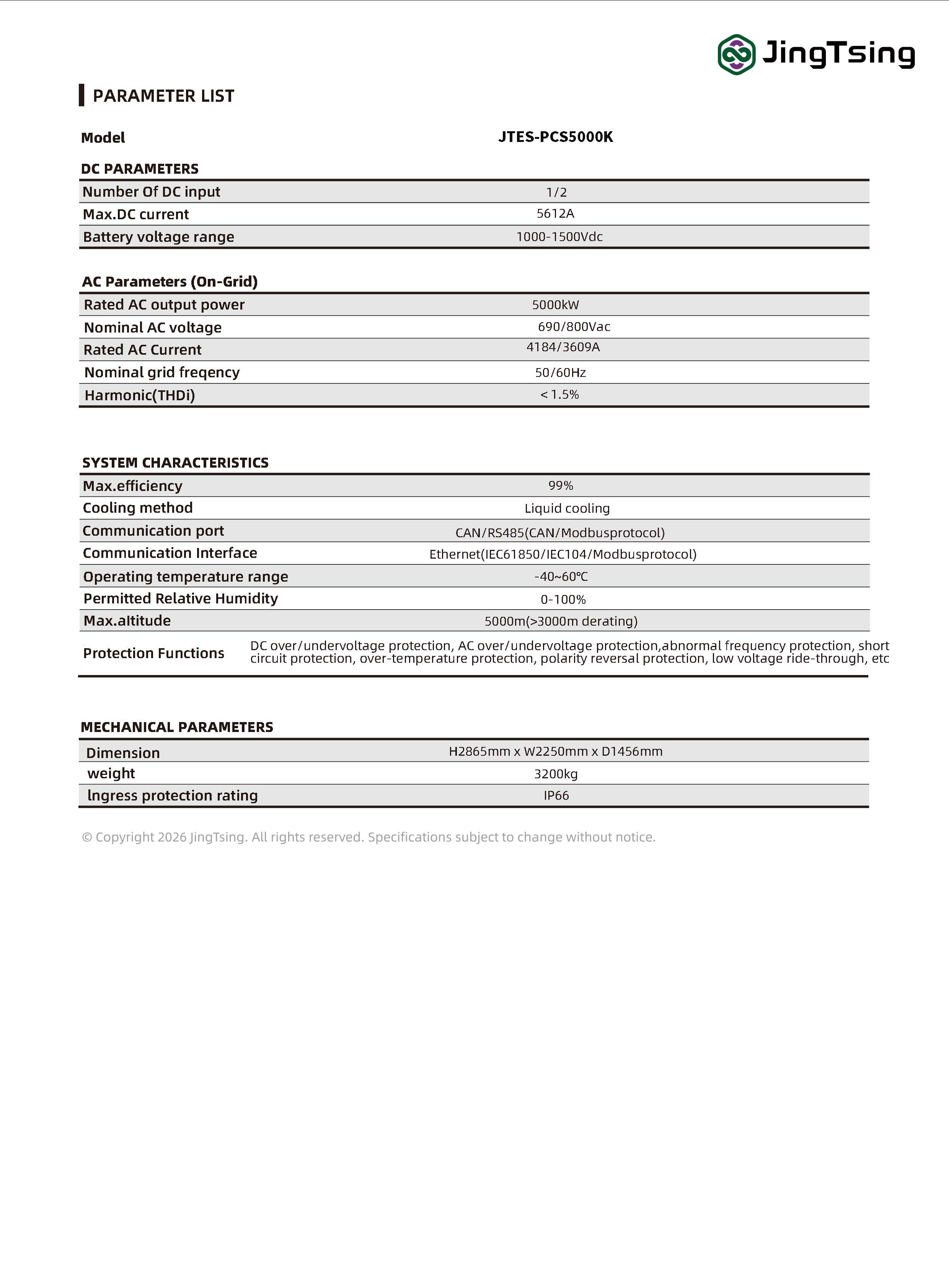

Product Specifications
