Efficient and reliable
﹥Liquid-cooled heat dissipation, longer device life.
﹥IGBT,reactors, capacitors and other key componentshave a good temperature equalization effect.
JTES-100K/125K-W

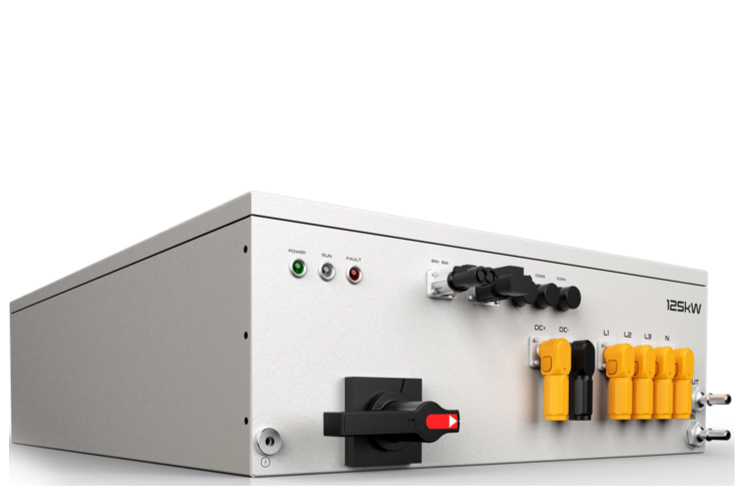

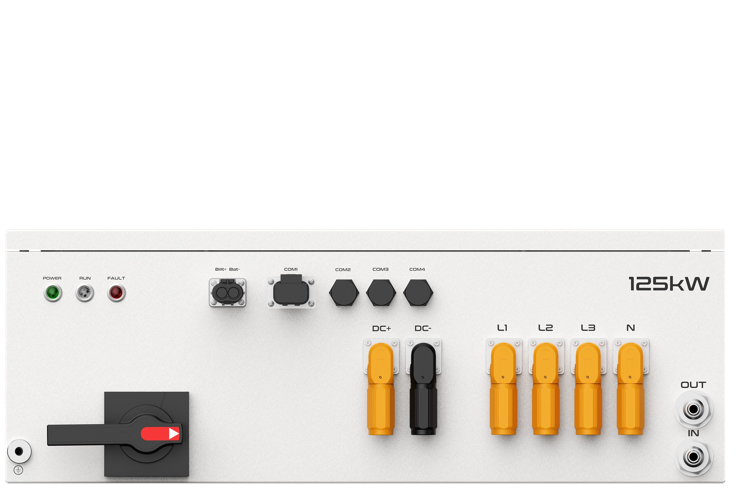

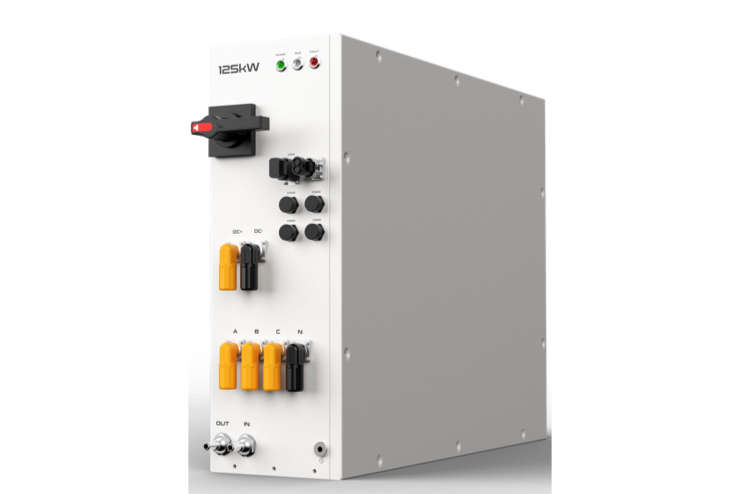

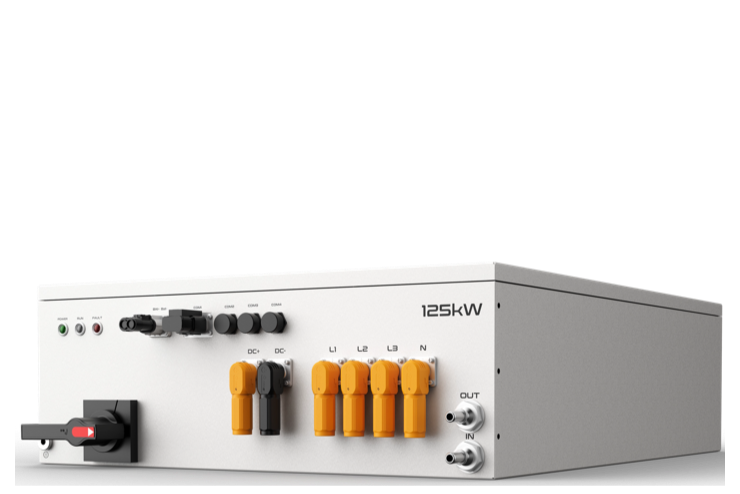

C&I Smart String Liquid-Cooled PCS
The main function is to realize the AC and DC bidirectional conversion of electric energy in the energystorage system, to control the charging and discharging process of the energy storage battery pack,to achieve accurate control, optimal management and efficient utilization of electric energy, and toprovide a strong guarantee for industrial and commercial energy storage systems.
Key Features
Reliable performance
﹥50° C high temperature stable operation withoutdegrading, friendly system matching.
﹥Modular parallel up to 16 units, protect customer's Income.
Quality assurancel
﹥High-standard quality control system.
﹥UL,CE,multi-country grid-connectedperformance certification.
Flexible Adaptation
﹥Supports linkage with BMS and EMS torealize multiple protection.
﹥Incorporate high-voltage switch box design.
Electrical Single-Line Diagram

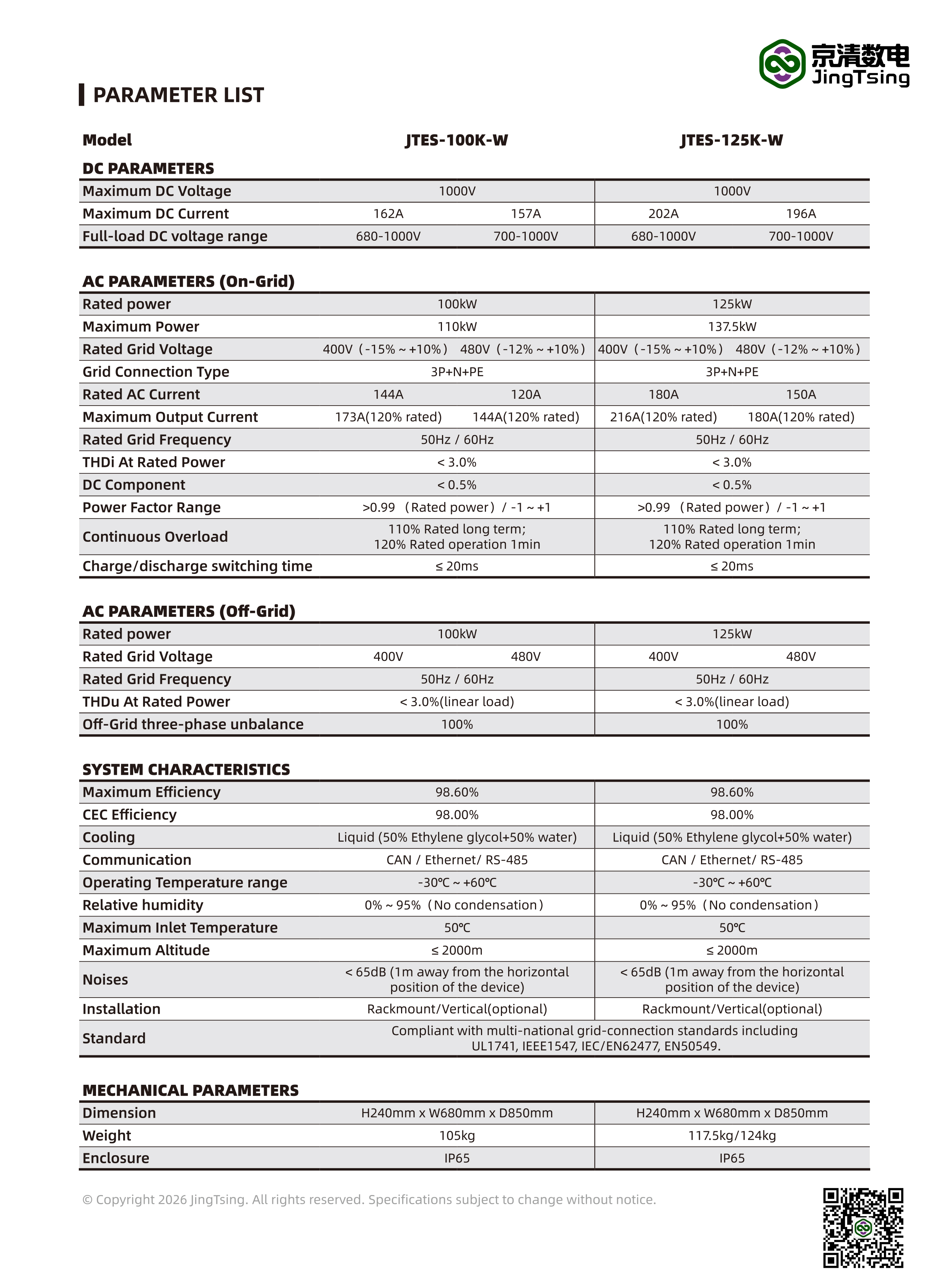

Product Specifications
