Superior Performance
﹥99% maximum efficiency, 120% overload capacity
﹥Fast response speed, charge/discharge conversiontime <20ms.
﹥Seamless grid-connected and off-grid switching,minimum switching time: 20ms.
JTES-PCS3450K/2750K-1500/690-A01G1

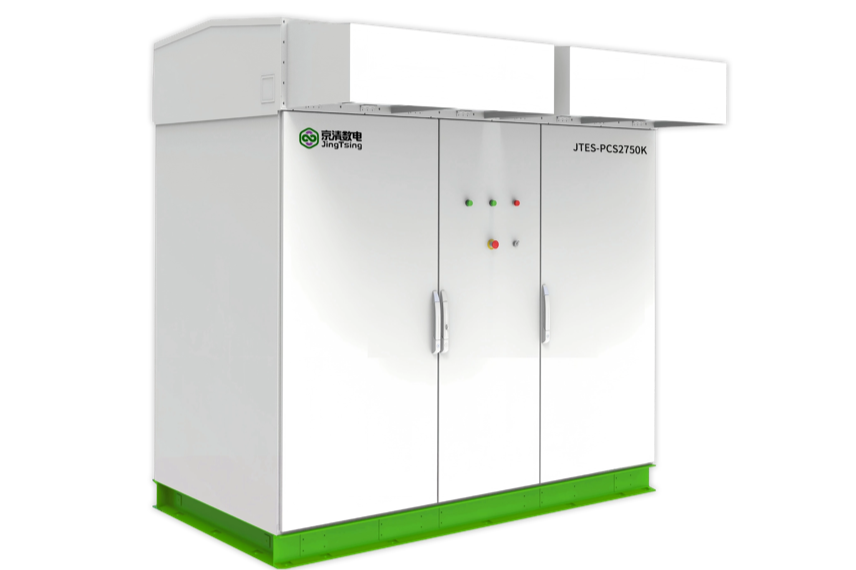

Centralized Air-Cooled PCS
It significantly reduces equipmentspace and installation costs, has an IP65 protectionrating, and is suitable for various outdoor environ-ments such as high temperatures, high humidity, andhigh altitudes. It is an excellent choice for large-scaleenergy storage applications on the generation side and grid side.
Key Features
Safe and Reliable
﹥IP65 protection grade, suitable for various outdoorenvironments.
﹥Dual DSP redundant control system, redundantbackup of control power supply.
﹥Professional design against sand, water, and salt fog,suitable for different outdoor scenarios.
Grid-friendly
﹥Strong grid adaptability, supports stable operationwith SCR=1.0.
﹥Grid-forming capability, active voltage support,andblack start
﹥Features zero voltage and high voltage ride-through capabilities.
Comprehensive Functions
﹥Includes functions such as Power Quality (PQ), Voltageand Frequency (VF), and Virtual Synchronous Genera-tor
(VSG).
﹥Multiple communication interfaces including Ethernet,RS485, and CAN, supporting various communicationprotocols such as IEC61850, IEC104, Modbus, and CAN.
﹥Compatible with various types of batteries, supportsmultiple charging and discharging modes such as constant power, constant voltage, and constant current.

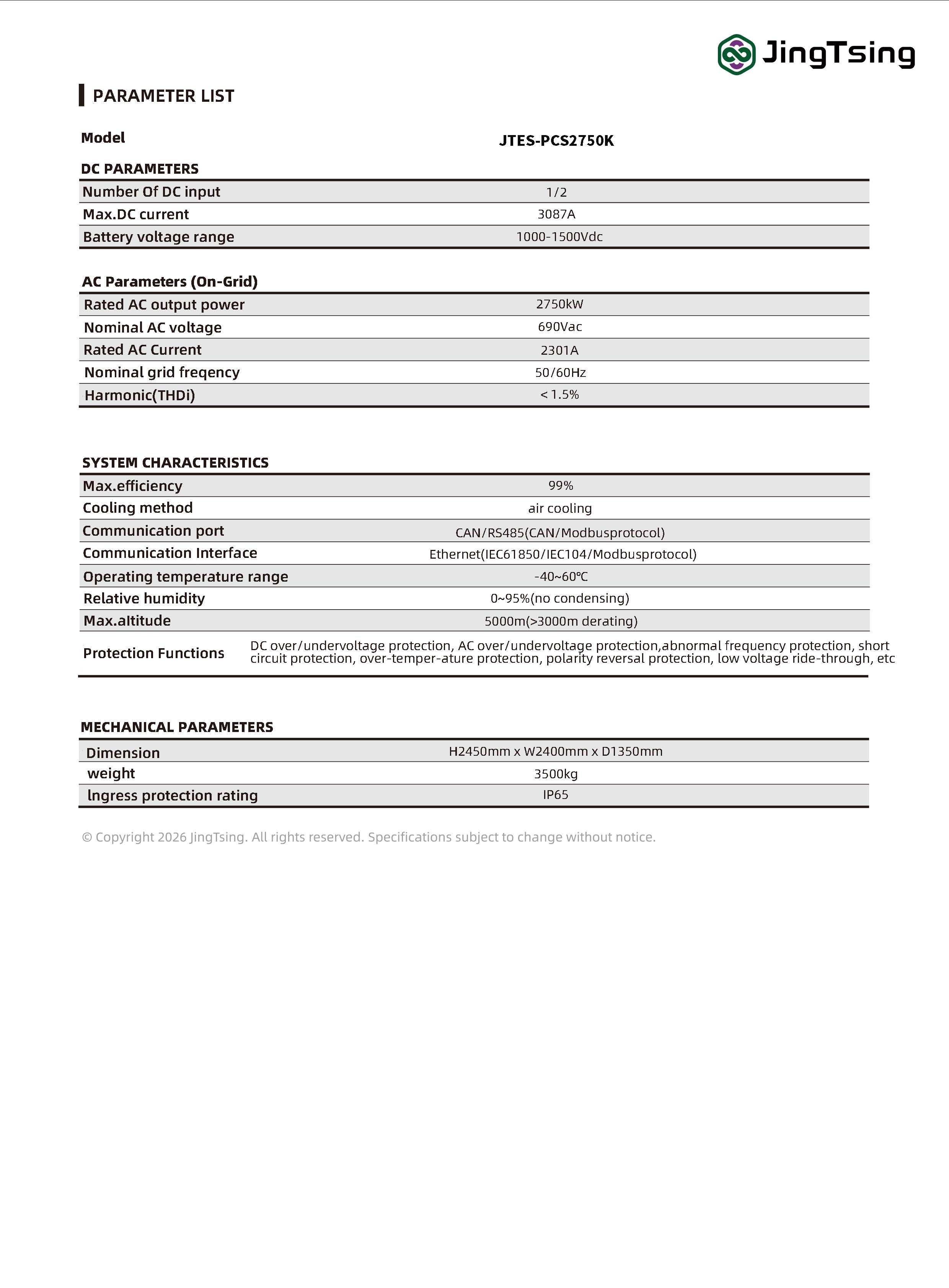

Product Specifications
