High-Efficiency Liquid Cooling
﹥Advanced liquid cooling technology extends component lifetime and enhances system reliability.
﹥Up to 98.8% maximum efficiency and 98.3% CEC efficiency with high-performance IGBT modules.
JTES-215K-W

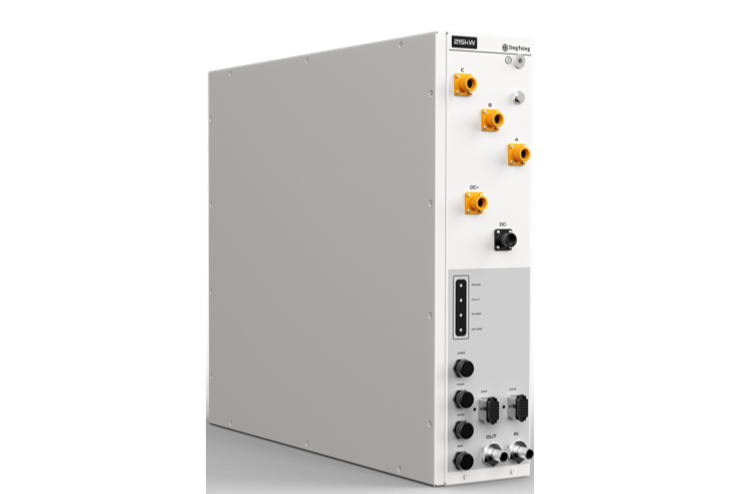

Utility-Scale String Liquid-Cooled PCS
Integrated design, fully compliant with DC cabinet installation requirements. Designed in accordancewith UL/CE standards, featuring liquid cooling, wide water temperature range, and reduced lossesfor energy storage systems. Compatible with battery cells, one cluster management per string, and flexibly adaptable to 2H/4H energy storage solutions.
Key Features
Intelligent & Integrated Design
﹥Fast active/reactive power response with VSG, PQ, and VF operating modes.
﹥Seamless communication with BMS and EMS, featuring comprehensive protection functions.
Reliable Performance
﹥End-to-end quality control ensures superior reliability and compliance with international standards.
﹥DSP + FPGA dual-core control architecture delivers high-speed response and optimized system performance.
Flexible & Space-Efficient
﹥Supports parallel operation with seamless grid-connected and off-grid modes.
﹥Compact design enables easy integration into containerized and DC-cabin energy storage systems.

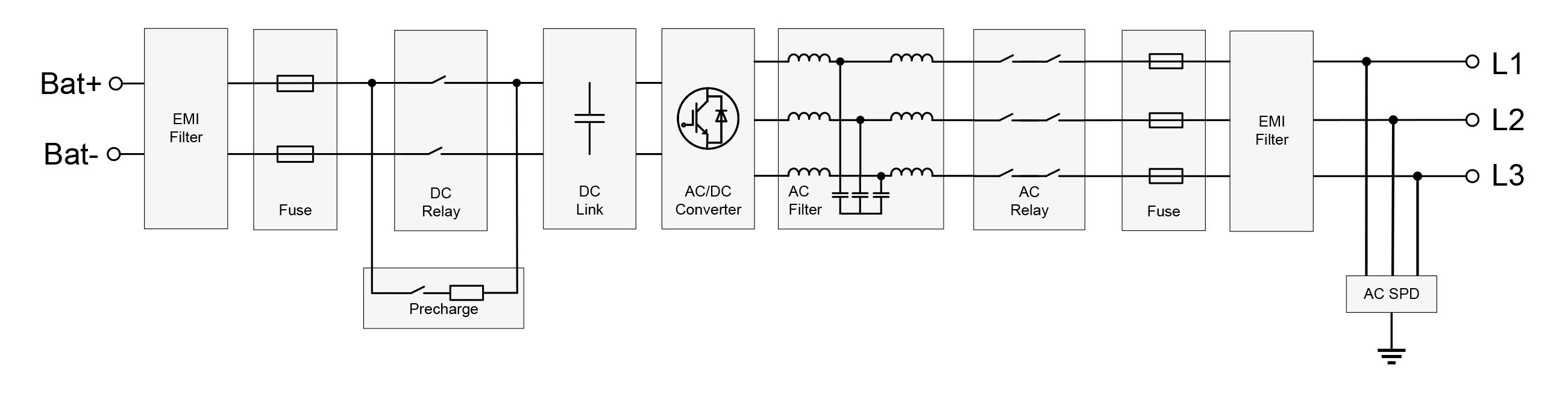

Electrical Single-Line Diagram

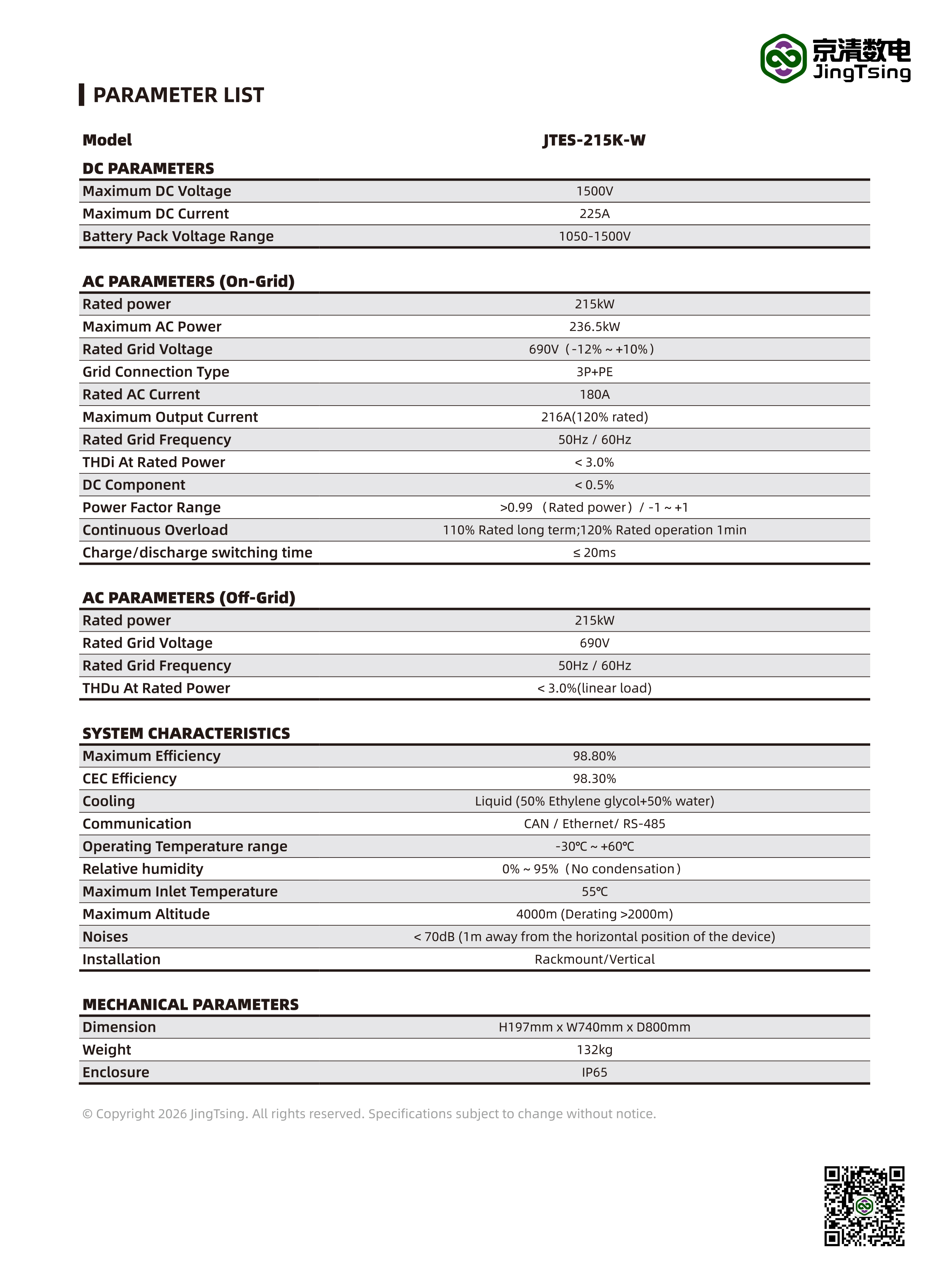

Product Specifications
