Superior Performance
﹥99% maximum efficiency, 120% overload capacity.
﹥Fast response speed, charge/discharge conversion
time <20ms.
﹥Seamless grid-connected and off-grid switching,minimum switching time: 20ms.
JTES-PCS3150K/3550k-1500/690-L01G1

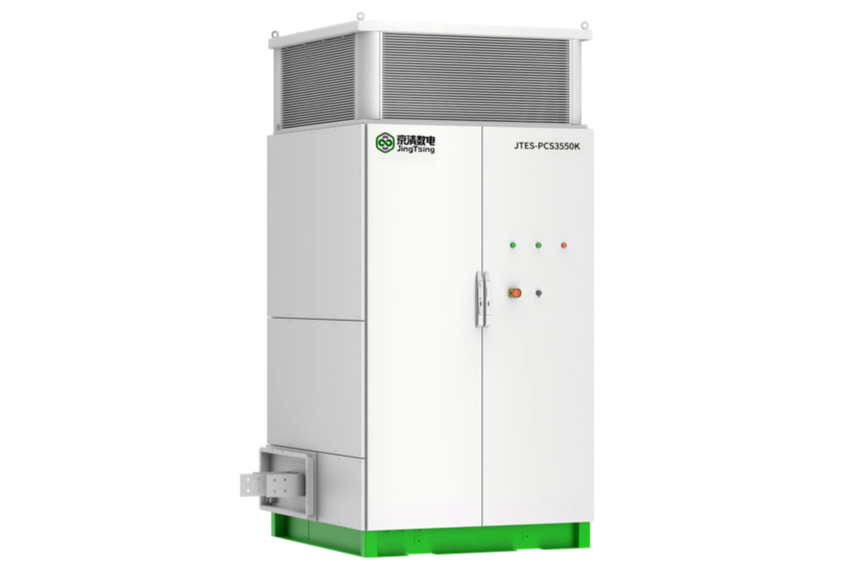

Centralized Liquid-Cooled PCS
Featur-ing high power, high power density, and high reliabili-ty, significantly reducing equipment space and installa-tion costs, and lowering customer LCOS (Levelized Costof Storage). The product has an IP66 protection rating,making it suitable for various outdoor environmentssuch as high temperatures, high heat, high humidity,high altitude, high salt corrosion, and sandstorms. It isan excellent choice for large-scale energy storage ap-plications on the generation side, grid side, and userside.
Key Features
Grid-friendly
﹥Strong grid adaptability, supports stable operation with SCR=1.0.
﹥Grid-forming capability, active voltage support,and black start.
﹥Features zero voltage and high voltage ride-through capabilities.
Safe and Reliable
﹥IP66 protection grade, suitable for various outdoor environments.
﹥Dual DSP redundant control system, redundant backup of control power supply.
﹥Professional design against sand, water, and salt fog,suitable for different outdoor scenarios.
Comprehensive Functions
﹥Includes functions such as Power Quality (PQ), Voltageand Frequency (VF), and Virtual Synchronous Genera-tor(VSG).
﹥Multiple communication interfaces including Ethernet,RS485, and CAN, supporting various communication protocols such as IEC61850, IEC104, Modbus, and CAN.
﹥Compatible with various types of batteries, supports multiple charging and discharging modes such as constant power,constant voltage, and constant current.

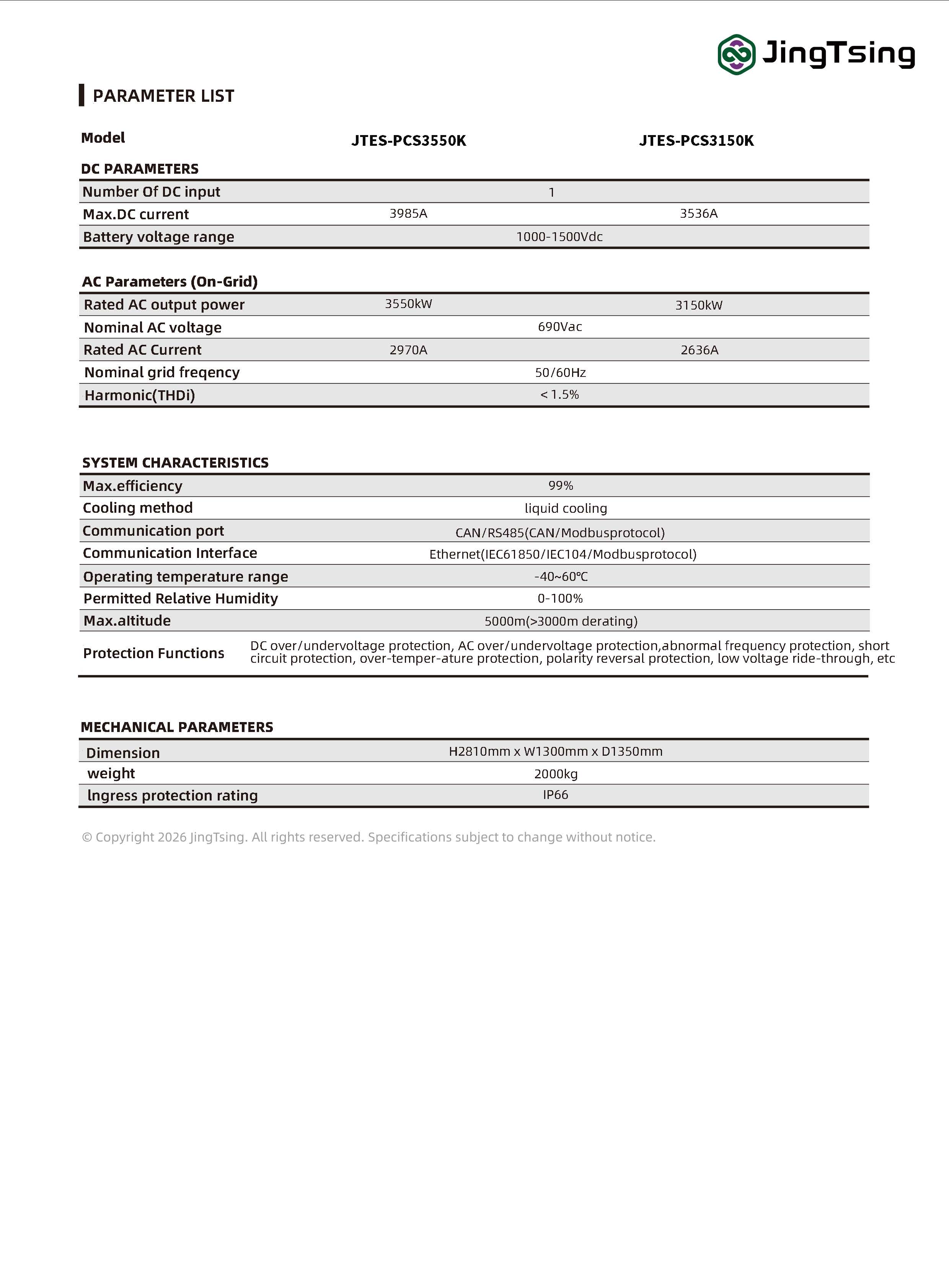

Product Specifications
