Efficient and reliable
﹥Liquid-cooled heat dissipation, longer device life.
﹥IGBT module with 98.80% conversion efficiency and98.5% CEC efficiency.

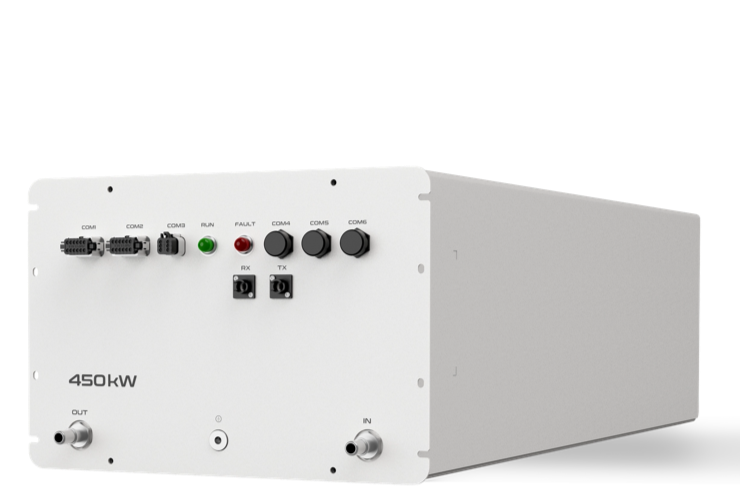

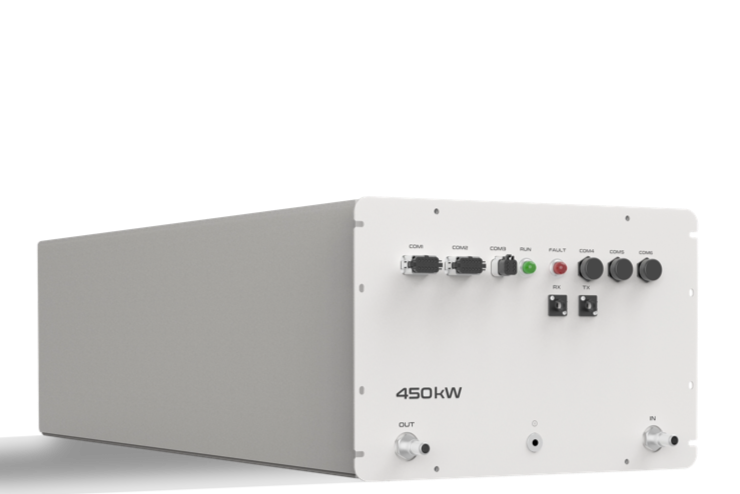

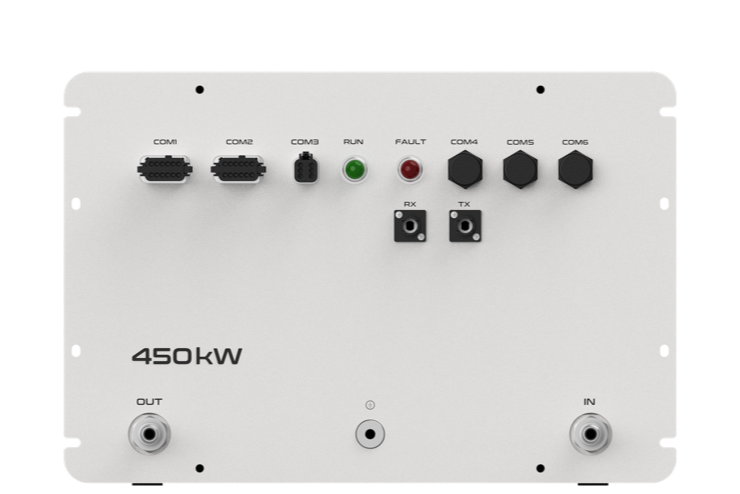

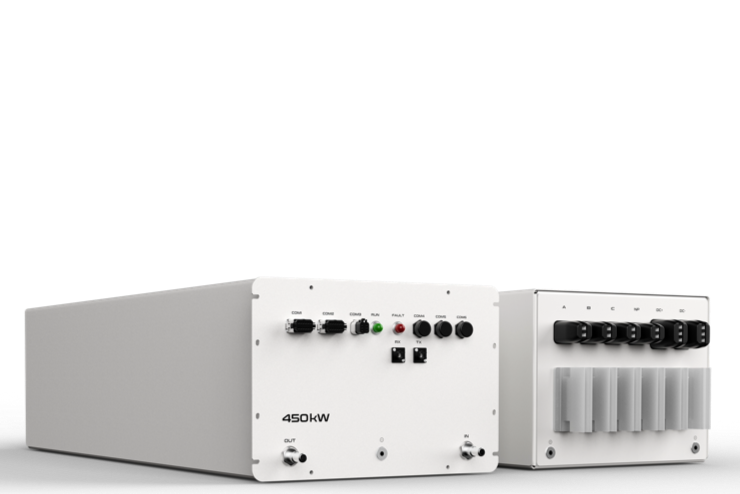

JTES-450K-W
Utility-Scale Liquid-Cooled Energy Storage PCS
The core equipment of the energy storage system on the power source and grid side has the functionsof grid following and grid forming to realize the charging and discharging functions of the battery. ThePCS module can be flexibly combined to match high power density cells.
Key Features
High power density
﹥Power density up to 2.38kW/L.
﹥Dual DSP+CPLD core control.
﹥Modular AC and DC parallel connection up to 8 synchronous controls.
Quality and standards
﹥High-standard quality control system.
﹥UL,CE,multi-country grid-connected performance certification.
Flexible Adaptation
﹥Copper bar plug-in structure design.
﹥Flexible combination of modules up to3.6MW/7.2MWh.
﹥HVRT / LVRT, PQ / VF / VSG, black start, etc.
Electrical Single-Line Diagram

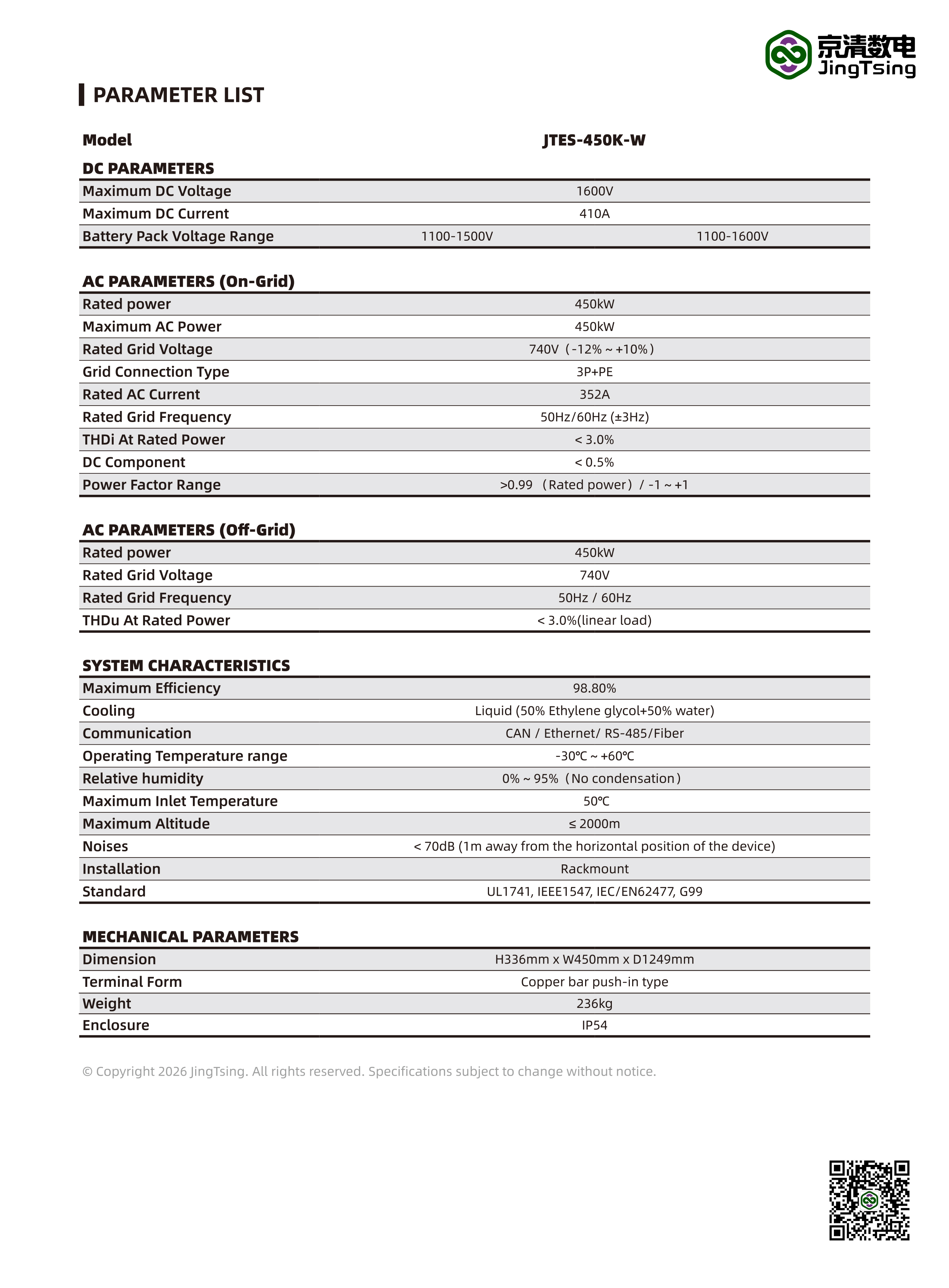

Product Specifications
