Flexible Compatibility
﹥Compatible with >600Ah cells for 2/4/8H
﹥systemsIntegrated PCS+PDU, fits integrated AC/DCenclosures..

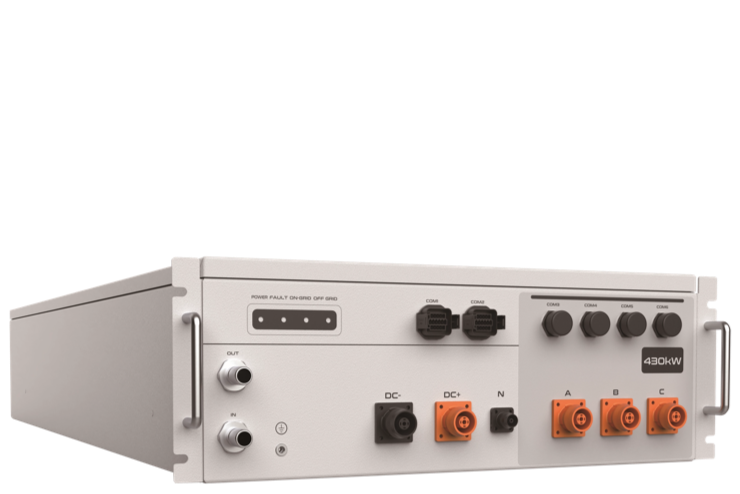

JTES-430K-W
Utility-Scale String Liquid-Cooled PCS
Designed for power source and grid side long-duration energy storage systems, it is compatiblewith large-capacity cells of 600Ah and above, adopting a "one cluster, one management" controlarchitecture.It supports flexible configuration for various long-duration storage demands including2H/4H/8H, with a compact design tailored to integrated AC-DC cabinet layout for easy system
integration.
Key Features
Smart & High-Efficiency
﹥Hybrid SiC module, rated full-load efficiency up to98.5%
﹥DSP+FPGA dual architecture, high-precision & high-dynamic response control.
Grid-Forming Support
Adaptive impedance & inertia control, stableat SCR > 1.2Supports HVRT/LVRT, black start
& multi-modes
High-Efficiency Liquid Cooling
IP65 High Protection, Liquid-Cooled,ReliableSupports BMS/EMS Communication,Multi-level Protection & Control
Electrical Single-Line Diagram

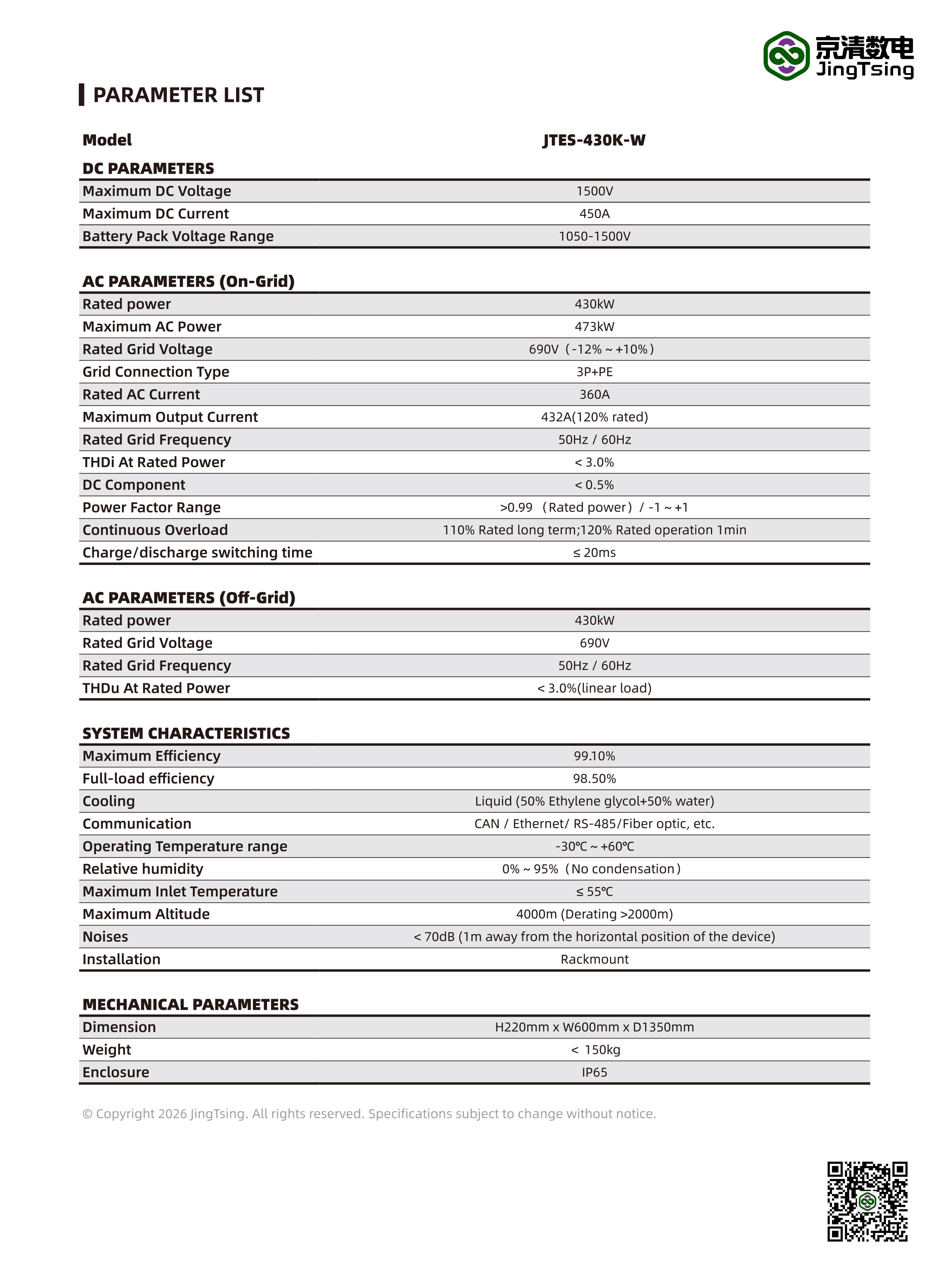

Product Specifications
